Willoughby Triple Outdoor Drinking Fountain - Pet ADA

Collection of elevation and plan drawings of the Willoughby Triple Outdoor Drinking Fountain (Pet ADA) with dimensions

The Willoughby Triple Outdoor Drinking Fountain (Pet ADA) is a multi-user public fixture able to provide drinking water at many varied heights—with an extra bowl specifically for pets. Typically found in parks and recreational environments, outdoor drinking fountains with pet bowls are popular for specialized dog parks and general public spaces with a high amount of dog walkers.

The Willoughby Triple Outdoor Drinking Fountain (Pet ADA) has an overall height of 42.5” (108 cm), width of 47.5” (121 cm), and depth of 11” (28 cm). Assuming correct installation above the finished surface, the Willoughby Triple Outdoor Drinking Fountain (Pet ADA) will meet ADA compliance.

What is the typical height for a standing drinking fountain?
Standing Drinking Fountains have common spout heights between 38"-43" (97-109 cm). Standing Drinking Fountains of these heights are not accessibility compliant.
What is the height of an accessible drinking fountain?
Accessible Water | Drinking Fountains must have spouts no higher than 36" (91.5 cm) measured from the ground to the spout outlet.
What is the height of a pet drinking bowl?
Pet Drinking Bowls found on special public water fountains are typically 7” (18 cm) from the ground surface.
Perspective view of a 3D model of the Willoughby Triple Outdoor Drinking Fountain (Pet ADA)

Details

*Under Development*

Height:
42.5” | 108 cm
Width:
47.5” | 121 cm
Depth:
11” | 28 cm
Length:
:
:
Weight:
230 lb | 104.3 kg
Area:
:

Type: Free Standing

ADA Compliant: Yes
Height (Accessible): 34” | 86 cm
Height (Pet Bowl): 7” | 18 cm

Materials:
Stainless Steel
Designer:
Willoughby
:

Properties

Drawings include:
Willoughby Triple Outdoor Drinking Fountain (Pet ADA) front elevation, side (dog and person), plan

Related Tags

Ad Blocker
Enjoy free drawings? We do too!
Advertising helps fund our work.
Please support the project by disabling
or whitelisting your ad blocker while browsing Dimensions.Guide. Thanks!

Water fountains, or drinking fountains, are fixtures designed to provide users with on-demand access to potable water. Water fountains are comprised of a tap connected to a stream of water and a basin for collecting overflow. Drinking fountains are typically used in public places.

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
42.5” | 108 cm
47.5” | 121 cm
11” | 28 cm
230 lb | 104.3 kg
Willoughby Triple Outdoor Drinking Fountain - Pet ADA
108.000
121.000
28.000
104.300
2400
https://p3d.in/e/bTXtG
GUIDE
3D
Willoughby Triple Outdoor Drinking Fountain - Pet ADAPerspective view of a 3D model of the Willoughby Triple Outdoor Drinking Fountain (Pet ADA)Perspective view of a 3D model of the Willoughby Triple Outdoor Drinking Fountain (Pet ADA)
42.5” | 108 cm
47.5” | 121 cm
11” | 28 cm
230 lb | 104.3 kg
Willoughby Triple Outdoor Drinking Fountain - Pet Junior ADA
108.000
121.000
28.000
104.300
2400
https://p3d.in/e/CKTKb
GUIDE
3D
Willoughby Triple Outdoor Drinking Fountain - Pet Junior ADA3D model of the Willoughby Triple Outdoor Drinking Fountain (Pet Junior ADA) viewed in perspective3D model of the Willoughby Triple Outdoor Drinking Fountain (Pet Junior ADA) viewed in perspective
42.5” | 108 cm
29.25” | 74.3 cm
11” | 28 cm
175 lb | 79.4 kg
Willoughby Double Outdoor Drinking Fountain - Pet
108.000
74.300
28.000
79.400
1900
https://p3d.in/e/5Hf9U
GUIDE
3D
Willoughby Double Outdoor Drinking Fountain - PetView of the Willoughby Double Outdoor Drinking Fountain (Pet) in 3D available for downloadView of the Willoughby Double Outdoor Drinking Fountain (Pet) in 3D available for download
8.125” | 20.6 cm
15.875” | 40.3 cm
14.5” | 36.8 cm
50 lb | 22.7 kg
Willoughby Single Outdoor Drinking Fountain - Pet
20.600
40.300
36.800
22.700
1900
https://p3d.in/e/MrCqI
GUIDE
3D
Willoughby Single Outdoor Drinking Fountain - PetPerspective view of a 3D model of the Willoughby Single Outdoor Drinking Fountain (Pet)Perspective view of a 3D model of the Willoughby Single Outdoor Drinking Fountain (Pet)
42.5” | 108 cm
32.6875” | 83 cm
11” | 28 cm
175 lb | 79.4 kg
Willoughby Double Outdoor Drinking Fountain - Junior ADA
108.000
83.000
28.000
79.400
1400
https://p3d.in/e/8xTnJ
GUIDE
3D
Willoughby Double Outdoor Drinking Fountain - Junior ADA3D model of the Willoughby Double Outdoor Drinking Fountain (Junior ADA) viewed in perspective3D model of the Willoughby Double Outdoor Drinking Fountain (Junior ADA) viewed in perspective
42.5” | 108 cm
32.6875” | 83 cm
11” | 28 cm
175 lb | 79.4 kg
Willoughby Double Outdoor Drinking Fountain - ADA
108.000
83.000
28.000
79.400
1400
https://p3d.in/e/VdDjF
GUIDE
3D
Willoughby Double Outdoor Drinking Fountain - ADAPerspective view of a 3D model of the Willoughby Double Outdoor Drinking Fountain (ADA)Perspective view of a 3D model of the Willoughby Double Outdoor Drinking Fountain (ADA)
42.25” | 107.3 cm
31” | 78.7 cm
11” | 28 cm
150 lb | 68 kg
Willoughby Single Outdoor Drinking Fountain - ADA
107.300
78.700
28.000
68.000
1400
https://p3d.in/e/jMpXY
GUIDE
3D
Willoughby Single Outdoor Drinking Fountain - ADAView of the Willoughby Single Outdoor Drinking Fountain (ADA) in 3D available for downloadView of the Willoughby Single Outdoor Drinking Fountain (ADA) in 3D available for download
42.5” | 108 cm
51” | 129.5 cm
11” | 28 cm
230 lb | 104.3 kg
Willoughby Triple Outdoor Drinking Fountain - ADA
108.000
129.500
28.000
104.300
1400
https://p3d.in/e/BmGiE
GUIDE
3D
Willoughby Triple Outdoor Drinking Fountain - ADAView of the Willoughby Triple Outdoor Drinking Fountain (ADA) in 3D available for downloadView of the Willoughby Triple Outdoor Drinking Fountain (ADA) in 3D available for download
42.25” | 107.3 cm
11” | 28 cm
11” | 28 cm
125 lb | 56.7 kg
Willoughby Single Outdoor Drinking Fountain
107.300
28.000
28.000
56.700
900
https://p3d.in/e/Aim59
GUIDE
3D
Willoughby Single Outdoor Drinking Fountain3D model of the Willoughby Single Outdoor Drinking Fountain viewed in perspective3D model of the Willoughby Single Outdoor Drinking Fountain viewed in perspective
13.5” | 34.3 cm
31.75” | 80.6 cm
19” | 48.3 cm
180 lb | 81.6 kg
Willoughby Double Outdoor Wall Mounted Drinking Fountain
34.300
80.600
48.300
81.600
900
https://p3d.in/e/MEyXr
GUIDE
3D
Willoughby Double Outdoor Wall Mounted Drinking FountainPerspective view of a 3D model of the Willoughby Double Outdoor Wall Mounted Drinking FountainPerspective view of a 3D model of the Willoughby Double Outdoor Wall Mounted Drinking Fountain
8.625” | 21.9 cm
11” | 28 cm
20.875” | 53 cm
90 lb | 40.8 kg
Willoughby Single Outdoor Wall Mounted Drinking Fountain
21.900
28.000
53.000
40.800
900
https://p3d.in/e/csdWX
GUIDE
3D
Willoughby Single Outdoor Wall Mounted Drinking Fountain3D model of the Willoughby Single Outdoor Wall Mounted Drinking Fountain viewed in perspective3D model of the Willoughby Single Outdoor Wall Mounted Drinking Fountain viewed in perspective
55” | 139.7 cm
12.6” | 32 cm
12.6” | 32 cm
31 lb | 14.1 kg
Brio Top-Load Water Cooler
139.700
32.000
32.000
14.100
200
https://p3d.in/e/BAaj3
GUIDE
3D
Brio Top-Load Water Cooler3D model of the Brio Essential Series Top-Load Water Cooler viewed in perspective3D model of the Brio Essential Series Top-Load Water Cooler viewed in perspective
20.375” | 51.8 cm
38.5” | 97.8 cm
19.375” | 49.2 cm
42 lb | 19.1 kg

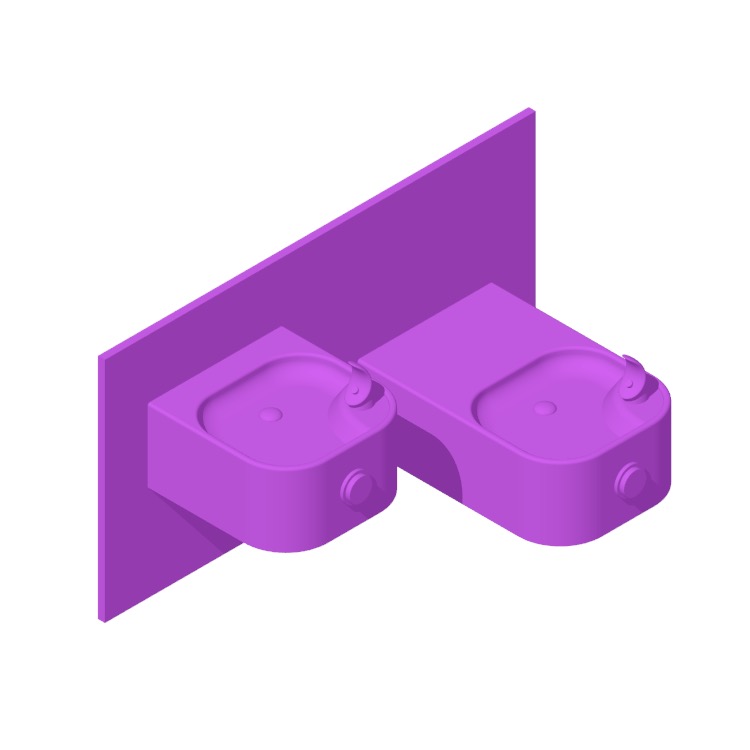

Elkay Bi-Level Wall Mounted Drinking Fountain
