Bowling Lane

Top and side view drawings of a Bowling Lane measured with length, width, and lane markings

A bowling lane is a long straight rectangular alley with two gutters along the side for bowling balls. At the front of the lane is the approach area with a foul line that cannot be passed. Flanking the middle of the lane are gutters or channels. At the end of the lane is the bowling pit which contains the bowling pins as well as any bowling pin machinery. Most bowling lanes are grouped together inside a bowling alley, and are built of long waxed and polished wooden boards with guide dots and arrows for aligning the bowling ball.

Bowling Lanes have a length of 60’ (18.29 m) to the center of the front pinhead and a lane width of 41.875” (106.36 cm). The overall length of the Bowling Lane with back service area and front approach area is 86.5’ (26.36 m) with a width of 60” (1.52 m). Bowling gutters have a width of 9.25” (23.5 cm) and a depth of 1.875” (47.6 mm). The approach area is typically 15’ (4.57 m) long.

Details

*Under Development*

Height:
Width:
60” | 1.52 m (Overall)
Depth:
Length:
60’ | 18.29 m (To Headpin)
:
:
Weight:

Overall Length: 86.5’ | 26.36 m (With service)
Lane Length (Overall): 62.86’ | 19.16 m
Lane Width: 41.875” | 106.36 cm
Lane Thickness: 2”-2.5” | 50.8-63.5 mm
Approach Area: 15’ | 4.57 m
Gutter Width: 9.25” | 23.5 cm
Gutter Depth: 1.875” | 47.6 mm
Arrows: 12’-16’ | 3.66-4.88 m (From foul line)
Arrow Size: 1.25” x 6” | 31.6 x 152.4 mm
Pinsetting Machine Depth: 8’ | 2.44 m
Service Aisle: 3’-4.5’ | .91-1.37 m
Service Depth: 17” | 43 cm
Surface Materials: Maple and pine wood, or synthetic wood flooring

:
:
Birthday:

Properties

Drawings include:
Bowling Lane plan, side, front

Related Tags

Downloads

2D Downloads

Right Click and 'Save As' to Download
Ad Blocker
Enjoy free drawings? We do too!
Advertising helps fund our work.
Please support the project by disabling
or whitelisting your ad blocker while browsing Dimensions.Guide. Thanks!

Bowling is a recreational and competitive sport where players attempt to throw a bowling ball into as many pins as possible. First dated to ancient Egypt, bowling sets have been found in Egyptian tombs and graves. The most common type of bowling is 10 pin bowling which is the professional norm.

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
4.5” | 11 cm (Diameter)
2.2-2.42 lb | 1-1.1 kg
Bowling Ball - Candlepin
11.000
1.100
70
https://p3d.in/e/OYuLR
3D
Bowling Ball - CandlepinView of a Candlepin Bowling Ball in 3D available for downloadView of a Candlepin Bowling Ball in 3D available for download
4.75”-5” | 12.1-12.7 cm (Diameter)
3.3-3.75 lb | 1.5-1.7 kg
Bowling Ball - Five-Pin & Duckpin
12.700
1.700
75
https://p3d.in/e/Kthod
3D
Bowling Ball - Five-Pin & DuckpinPerspective view of a 3D model of a Bowling Ball (Five-Pin & Duckpin)Perspective view of a 3D model of a Bowling Ball (Five-Pin & Duckpin)
8.595” | 21.83 cm (Diameter)
10-16 lb | 4.54-7.26 kg (Max)
Bowling Ball - Ten-Pin
21.830
7.260
40
https://p3d.in/e/iHChp
3D
Bowling Ball - Ten-Pin3D model of a Ten-Pin Bowling Ball viewed in perspective3D model of a Ten-Pin Bowling Ball viewed in perspective
34.5” | 87.5 cm
18” | 45.7 cm
9.1’ | 2.78 m
Bowling Ball Return
87.500
45.700
278.000
100
https://p3d.in/e/GhU0Q
3D
Bowling Ball Return3D perspective of a Bowling Ball Return available for download3D perspective of a Bowling Ball Return available for download
60” | 1.52 m (Overall)
60’ | 18.29 m (To Headpin)
440 ft² | 40.9 m² (Overall)
Bowling Lane
152.000
1829.000
40.90
2500
https://p3d.in/e/SJYBM
3D
Bowling LaneView of a Bowling Lane in 3D available for downloadView of a Bowling Lane in 3D available for download
11.68’ | 3.56 m (Overall)
60’ | 18.29 m (To Headpin)
954 ft² | 88.6 m² (Overall)
Bowling Lane - Ball Return
356.000
1829.000
88.60
3000
https://p3d.in/e/zYuF2
3D
Bowling Lane - Ball ReturnPerspective of a 3D model of a pair of Bowling Lanes with Ball ReturnPerspective of a 3D model of a pair of Bowling Lanes with Ball Return
15.75” | 40 cm
2.9375” | 74.6 mm (Diameter)
2.43 lb | 1.1 kg
Candlepin
40.000
7.470
1.100
300
https://p3d.in/e/vkLim
3D
Candlepin3D model of a Candlepin viewed in perspective3D model of a Candlepin viewed in perspective
15.75” | 40 cm
38.875” | 98.7 cm
34.125” | 86.7 cm
Candlepin Pin Deck
40.000
98.700
86.700
5
https://p3d.in/e/DPg9G
3D

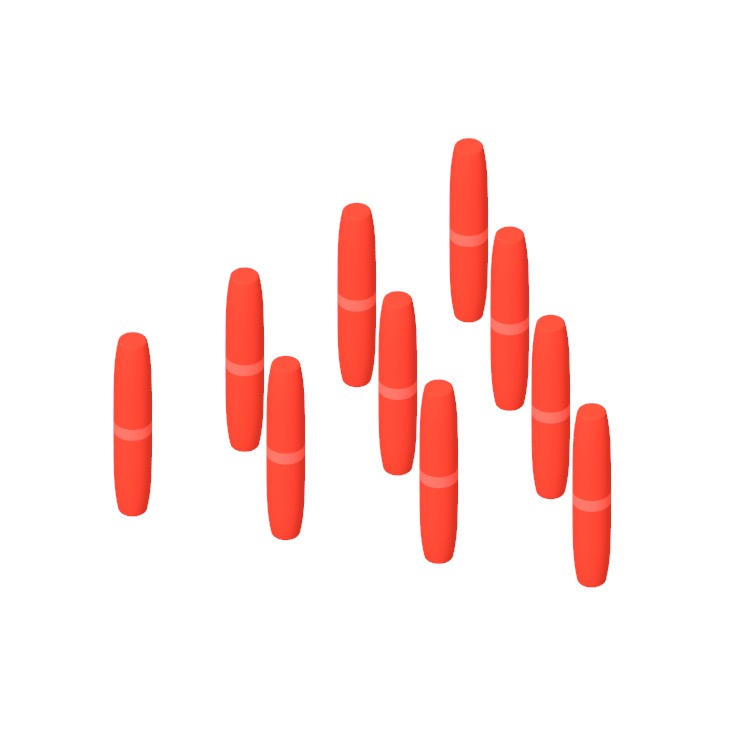

Candlepin Pin DeckPerspective view of a 3D model of a Candlepin Pin DeckPerspective view of a 3D model of a Candlepin Pin Deck
